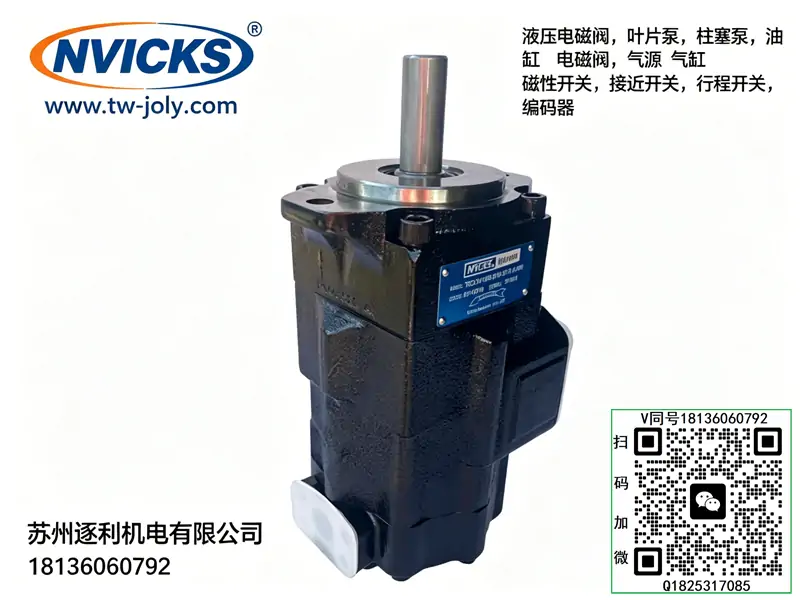

NVICKS葉片泵3525VQ30A25-1CC20R 油泵 25VQ25A-1C20L
20V 系列：20V11A-1A22L,20V11A-1A22R,20V11A-1B22R,20V11A-1C22R,20V11A-1D22R,20V12A-1A22R,20V12A-1D22R,20V5A-1C22R,20V5A-1D22R,20V8A-151C22R,20V8A-1A22R,20V8A-1C22L,20V8A-1C22R,20V8A-1D22R
20VQ 系列：20VQ-11A,20VQ11A-1A22R,20VQ11A-1B22R,20VQ-12A,20VQ-14A,20VQ-5A,20VQ5A-1C22R,20VQ5A-1C30,20VQ-8A,20VQ8A-151C22R
2520V 系列：2520V10A10-1AB22R,2520V10A10-1AC22R,2520V10A10-1AD22R,2520V10A11-1AB22R,2520V10A11-1AC22R,2520V10A11-1AD22R,2520V10A12-1AB22R,2520V10A12-1AC22R,2520V10A12-1AD22R,2520V10A14-1AB22R,2520V10A14-1AC22R,2520V10A14-1AD22R,2520V10A2-1AB22R,2520V10A2-1AC22R,2520V10A2-1AD22R,2520V10A3-1AB22R,2520V10A3-1AC22R,2520V10A3-1AD22R,2520V10A4-1AB22R,2520V10A4-1AC22R,2520V10A4-1AD22R,2520V10A5-1AB22R,2520V10A5-1AC22R,2520V10A5-1AD22R,2520V-10A-5-1C22R,2520V10A6-1AB22R,2520V10A6-1AC22R,2520V10A6-1AD22R,2520V10A7-1AB22R,2520V10A7-1AC22R,2520V10A7-1AD22R,2520V10A8-1AB22R,2520V10A8-1AC22R,2520V10A8-1AD22R,2520V10A9-1AB22R,2520V10A9-1AC22R,2520V10A9-1AD22R,2520V12A10-1AB22R,2520V12A10-1AC22R,2520V12A10-1AD22R,2520V-12A10-1C22R,2520V12A11-1AA22R,2520V12A11-1AB22R,2520V12A11-1AC22R,2520V12A11-1AD22R,2520V12A11-1DD22R,2520V12A12-1AB22R,2520V12A12-1AC22R,2520V12A12-1AD22R,2520V-12A12-1C22R,2520V12A14-1AB22R,2520V12A14-1AC22R,2520V12A14-1AD22R,2520V-12A14-1C22R,2520V12A2-1AB22R,2520V12A2-1AC22R,2520V12A2-1AD22R,2520V12A2-1BB22R,2520V12A2-1CA22R,2520V12A3-1AB22R,2520V12A3-1AC22R,2520V12A3-1AD22R,2520V12A4-1AB22R,2520V12A4-1AC22R,2520V12A4-1AD22R,2520V12A5-1AB22R,2520V12A5-1AC22R,2520V12A5-1AD22R,2520V-12A-5-1C22R,2520V12A5-1DD22R,2520V12A6-1AB22R,2520V12A6-1AC22R,2520V12A6-1AD22R,2520V12A7-1AB22R,2520V12A7-1AC22R,2520V12A7-1AD22R,2520V12A8-1AA22R,2520V12A8-1AB22R,2520V12A8-1AC22R,2520V12A8-1AD22R,2520V-12A8-1C22R,2520V12A8-1CC22R,2520V12A8-1DD22R,2520V12A9-1AB22R,2520V12A9-1AC22R,2520V12A9-1AD22R,2520V14A10-1AB22R,2520V14A10-1AC22R,2520V14A10-1AD22R,2520V-14A-10-1C22R,2520V14A11-1AA22R,2520V14A11-1AB22R,2520V14A11-1AC22R,2520V14A11-1AD22R,2520V14A11-1BB22R,2520V14A11-1CC22R,2520V14A11-1DD22R,2520V14A12-1AA22R,2520V14A12-1AB22R,2520V14A12-1AC22R,2520V14A12-1AD22R,2520V-14A-12-1C22R,2520V14A14-1AB22R,2520V14A14-1AC22R,2520V14A14-1AD22R,2520V-14A-14-1C22R,2520V14A2-1AB22R,2520V14A2-1AC22R,2520V14A2-1AD22R,2520V14A3-1AB22R,2520V14A3-1AC22R,2520V14A3-1AD22R,2520V14A4-1AB22R,2520V14A4-1AC22R,2520V14A4-1AD22R,2520V14A5-1AB22R,2520V14A5-1AC22R,2520V14A5-1AD22R,2520V14A5-1BB22R,2520V-14A-5-1C22R,2520V14A5-1CC22R,2520V14A5-1DD22R,2520V14A6-1AB22R,2520V14A6-1AC22R,2520V14A6-1AD22R,2520V14A7-1AB22R,2520V14A7-1AC22R,2520V14A7-1AD22R,2520V14A8-1AB22R,2520V14A8-1AC22R,2520V14A8-1AD22R,2520V14A8-1BB22R,2520V-14A-8-1C22R,2520V14A8-1CC22R,2520V14A8-1DD22R,2520V14A9-1AB22R,2520V14A9-1AC22R,2520V14A9-1AD22R,2520V15A10-1AB22R,2520V15A10-1AC22R,2520V15A10-1AD22R,2520V15A11-1AB22R,2520V15A11-1AC22R,2520V15A11-1AD22R,2520V15A12-1AB22R,2520V15A12-1AC22R,2520V15A12-1AD22R,2520V15A14-1AB22R,2520V15A14-1AC22R,2520V15A14-1AD22R,2520V15A2-1AB22R,2520V15A2-1AC22R,2520V15A2-1AD22R,2520V15A3-1AB22R,2520V15A3-1AC22R,2520V15A3-1AD22R,2520V15A4-1AB22R,2520V15A4-1AC22R,2520V15A4-1AD22R,2520V15A5-1AB22R,2520V15A5-1AC22R,2520V15A5-1AD22R,2520V15A6-1AB22R,2520V15A6-1AC22R,2520V15A6-1AD22R,2520V15A7-1AB22R,2520V15A7-1AC22R,2520V15A7-1AD22R,2520V15A8-1AB22R,2520V15A8-1AC22R,2520V15A8-1AD22R,2520V15A9-1AB22R,2520V15A9-1AC22R,2520V15A9-1AD22R,2520V17A10-1AB22R,2520V17A10-1AC22R,2520V17A10-1AD22R,2520V-17A-10-1C22R,2520V17A11-1AB22R,2520V17A11-1AC22R,2520V17A11-1AD22R,2520V17A11-1DD22R,2520V17A11-86DD22R,2520V17A12-1AB22R,2520V17A12-1AC22R,2520V17A12-1AD22R,2520V-17A-121C22R,2520V17A14-1AA22R,2520V17A14-1AB22R,2520V17A14-1AC22R,2520V17A14-1AD22R,2520V-17A-14-1C22R,2520V17A14-1CB22R,2520V17A14-1CC22R,2520V17A2-1AB22R,2520V17A2-1AC22R,2520V17A2-1AD22R,2520V17A3-1AB22R,2520V17A3-1AC22R,2520V17A3-1AD22R,2520V17A4-1AB22R,2520V17A4-1AC22R,2520V17A4-1AD22R,2520V17A5-1AA-22R,2520V17A5-1AB22R,2520V17A5-1AC22R,2520V17A5-1AD22R,2520V17A5-1BB22R,2520V-17A-5-1C22R,2520V17A5-1CC22R,2520V17A5-1DD22R,2520V17A6-1AB22R,2520V17A6-1AC22R,2520V17A6-1AD22R,2520V17A7-1AB22R,2520V17A7-1AC22R,2520V17A7-1AD22R,2520V17A8-1AA22R,2520V17A8-1AB22R,2520V17A8-1AC22R,2520V17A8-1AD22R,2520V17A8-1BB22R,2520V-17A-8-1C22R,2520V17A8-1CB22R,2520V17A8-1CC22L,2520V17A8-1CC22R,2520V17A9-1AB22R,2520V17A9-1AC22R,2520V17A9-1AD22R,2520V19A10-1AB22R,2520V19A10-1AC22R,2520V19A10-1AD22R,2520V19A11-1AB22R,2520V19A11-1AC22R,2520V19A11-1AD22R,2520V19A12-1AB22R,2520V19A12-1AC22R,2520V19A12-1AD22R,2520V19A14-1AB22R,2520V19A14-1AC22R,2520V19A14-1AD22R,2520V19A2-1AB22R,2520V19A2-1AC22R,2520V19A2-1AD22R,2520V19A3-1AB22R,2520V19A3-1AC22R,2520V19A3-1AD22R,2520V19A4-1AB22R,2520V19A4-1AC22R,2520V19A4-1AD22R,2520V19A5-1AB22R,2520V19A5-1AC22R,2520V19A5-1AD22R,2520V19A6-1AB22R,2520V19A6-1AC22R,2520V19A6-1AD22R,2520V19A7-1AB22R,2520V19A7-1AC22R,2520V19A7-1AD22R,2520V19A8-1AB22R,2520V19A8-1AC22R,2520V19A8-1AD22R,2520V19A9-1AB22R,2520V19A9-1AC22R,2520V19A9-1AD22R,2520V21A10-1AB22R,2520V21A10-1AC22R,2520V21A10-1AD22R,2520V-21A-10-1C22R,2520V21A11-1AA22R,2520V21A11-1AB22R,2520V21A11-1AC22R,2520V21A11-1AD22R,2520V21A11-1BB22R,2520V21A11-1CC22R,2520V21A11-1DA22R,2520V21A12-1AA22R,2520V21A12-1AB22R,2520V21A12-1AC22R,2520V21A12-1AD22R,2520V21A12-1BB22R,2520V-21A-12-1C22R,2520V21A12-1CB22R,2520V21A12-1CC22R,2520V21A12-1DD22R,2520V21A14-1AA22R,2520V21A14-1AB22R,2520V21A14-1AC22R,2520V21A14-1AD22R,2520V-21A-14-1C22R,2520V21A14-1CB22R,2520V21A14-1DD22R,2520V21A2-1AA22R,2520V21A2-1AB22R,2520V21A2-1AC22R,2520V21A2-1AD22R,2520V21A2-1CC22R,2520V21A3-1AB22R,2520V21A3-1AC22R,2520V21A3-1AD22R,2520V21A4-1AB22R,2520V21A4-1AC22R,2520V21A4-1AD22R,2520V21A5-1AA22R,2520V21A5-1AB22R,2520V21A5-1AC22R,2520V21A5-1AD22R,2520V-21A-5-1C22R,2520V21A5-1CC22R,2520V21A5-1DD22R,2520V21A6-1AB22R,2520V21A6-1AC22R,2520V21A6-1AD22R,2520V21A7-1AB22R,2520V21A7-1AC22R,2520V21A7-1AD22R,2520V21A8-1AA22R,2520V21A8-1AB22R,2520V21A8-1AC22R,2520V21A8-1AD22R,2520V21A8-1BB22R,2520V-21A-8-1C22R,2520V21A8-1CC22R,2520V21A8-1DD22R,2520V21A9-1AB22R,2520V21A9-1AC22R,2520V21A9-1AD22R
2520VQ 系列：2520VQ-12A11,2520VQ12A11-1AA22R,2520VQ12A11-1DD22R,2520VQ12A2-1BB22R,2520VQ-12A5,2520VQ12A5-1DD22R,2520VQ-12A8,2520VQ12A8-1AA22R,2520VQ12A8-1CC22R,2520VQ12A8-1DD22R,2520VQ-14A11,2520VQ14A11-1DD22R,2520VQ-14A12,2520VQ14A12-1AA22R,2520VQ-14A5,2520VQ14A5-1DD22R,2520VQ-14A8,2520VQ14A8-1CC22R,2520VQ-17A11,2520VQ17A11-1DD22R,2520VQ17A11-86DD22R,2520VQ-17A12,2520VQ-17A14,2520VQ17A14-1AA22R,2520VQ-17A14-1CC-10R,2520VQ-17A5,2520VQ17A5-1AA-22R,2520VQ17A5-1AB22R,2520VQ-17A8,2520VQ17A8-1AA22R,2520VQ17A8-1CB22R,2520VQ17A8-1CC22L,2520VQ-19A12-1CC-10R,2520VQ-19A14-1CC-10R,2520VQ-21A11,2520VQ21A11-1AA22R,2520VQ-21A12,2520VQ21A12-1AA22R,2520VQ21A12-1BB22R,2520VQ-21A14,2520VQ21A14-1AD22R,2520VQ-21A5,2520VQ21A5-1AA22R,2520VQ21A5-1CC22R,2520VQ-21A8,2520VQ21A8-1CC22R,2520VQ21A8-1DD22R,2520VQH17A12-1DD20R
2525V 系列：2525V-10A-10-1C22R,2525V-10A-12-1C22R,2525V-10A-14-1C22R,2525V-10A-17-1C22R,2525V-10A-21-1C22R,2525V-12A-10-1C22R,2525V-12A-12-1C22R,2525V-12A-14-1C22R,2525V-12A-17-1C22R,2525V-12A-21-1C22R,2525V-14A-10-1C22R,2525V-14A-12-1C22R,2525V-14A-14-1C22R,2525V-14A-17-1C22R,2525V-14A-21-1C22R,2525V-17A-10-1C22R,2525V-17A-12-1C22R,2525V-17A-14-1C22R,2525V-17A-17-1C22R,2525V-17A-21-1C22R,2525V-21A-10-1C22R,2525V-21A-12-1C22R,2525V-21A-14-1C22R,2525V-21A-17-1C22R,2525V21A17-86DA22R,2525V-21A-21-1C22R
2525VQ 系列：2525VQ-10A-10-1C22R,2525VQ-10A-21-1C22R,2525VQ-12A-10-1C22R,2525VQ-12A-21-1C22R,2525VQ-14A-10-1C22R,2525VQ-14A-21-1C22R,2525VQ-17A-10-1C22R,2525VQ-17A-21-1C22R,2525VQ-21A-21-1C22R
25V 系列：25V10A-1A22R,25V10A-1C22R,25V12A-11A22R,25V12A-1B22R,25V12A-1C22R,25V12A-1D22R,25V14A-1A22R,25V14A-1B22L,25V14A-1B22R,25V14A-1C22R,25V14A-1D22R,25V14AF-1C22R,25V14AM-1D22R,25V17A-11B22L,25V17A-1A22L,25V17A-1A22R,25V17A-1B22R,25V17A-1C22R,25V17A-1D22R,25V21A-1A22L,25V21A-1A22R,25V21A-1B22R,25V21A-1C22R,25V21A-1D22R
25VQ 系列：25VQ-12A,25VQ12A-1B22R,25VQ-14A,25VQ-17A,25VQ17A-1A22R,25VQ17A-1B22R,25VQ17A-1C22R,25VQ-21A
3520V 系列：3520V21A10-1AA22R,3520V21A10-1BA22R,3520V21A10-1BB22R,3520V21A10-1BC22R,3520V21A10-1BD22R,3520V21A11-1AA22R,3520V21A11-1BA22R,3520V21A11-1BB22R,3520V21A11-1BC22R,3520V21A11-1BD22R,3520V21A12-1AA22R,3520V21A12-1BA22R,3520V21A12-1BB22R,3520V21A12-1BC22R,3520V21A12-1BD22R,3520V21A14-1AA22R,3520V21A14-1BA22R,3520V21A14-1BB22R,3520V21A14-1BC22R,3520V21A14-1BD22R,3520V21A2-1AA22R,3520V21A2-1BA22R,3520V21A2-1BB22R,3520V21A2-1BC22R,3520V21A2-1BD22R,3520V21A3-1AA22R,3520V21A3-1BA22R,3520V21A3-1BB22R,3520V21A3-1BC22R,3520V21A3-1BD22R,3520V21A4-1AA22R,3520V21A4-1BA22R,3520V21A4-1BB22R,3520V21A4-1BC22R,3520V21A4-1BD22R,3520V21A5-1AA22R,3520V21A5-1BA22R,3520V21A5-1BB22R,3520V21A5-1BC22R,3520V21A5-1BD22R,3520V21A6-1AA22R,3520V21A6-1BA22R,3520V21A6-1BB22R,3520V21A6-1BC22R,3520V21A6-1BD22R,3520V21A7-1AA22R,3520V21A7-1BA22R,3520V21A7-1BB22R,3520V21A7-1BC22R,3520V21A7-1BD22R,3520V21A8-1AA22R,3520V21A8-1BA22R,3520V21A8-1BB22R,3520V21A8-1BC22R,3520V21A8-1BD22R,3520V21A9-1AA22R,3520V21A9-1BA22R,3520V21A9-1BB22R,3520V21A9-1BC22R,3520V21A9-1BD22R,3520V25A10-1AA22R,3520V25A10-1BA22R,3520V25A10-1BB22R,3520V25A10-1BC22R,3520V25A10-1BD22R,3520V-25A-10-1C22R,3520V25A11-1AA22R,3520V25A11-1BA22R,3520V25A11-1BB22R,3520V25A11-1BC22R,3520V25A11-1BD22R,3520V-25A-11-1C22R,3520V25A11-86AB22R,3520V25A12-1AA22R,3520V25A12-1BA22R,3520V25A12-1BB22R,3520V25A12-1BC22R,3520V25A12-1BD22R,3520V-25A-12-1C22R,3520V25A12-1CC22R,3520V25A12-1DD22R,3520V25A14-1AA22R,3520V25A14-1BA22R,3520V25A14-1BB22R,3520V25A14-1BC22R,3520V25A14-1BD22R,3520V-25A-14-1C22R,3520V25A2-1AA22R,3520V25A2-1BA22R,3520V25A2-1BB22R,3520V25A2-1BC22R,3520V25A2-1BD22R,3520V25A3-1AA22R,3520V25A3-1BA22R,3520V25A3-1BB22R,3520V25A3-1BC22R,3520V25A3-1BD22R,3520V25A4-1AA22R,3520V25A4-1BA22R,3520V25A4-1BB22R,3520V25A4-1BC22R,3520V25A4-1BD22R,3520V25A5-1AA22R,3520V25A5-1BA22R,3520V25A5-1BB22R,3520V25A5-1BC22R,3520V25A5-1BD22R,3520V-25A-5-1C22R,3520V25A5-1CC22R,3520V25A6-1AA22R,3520V25A6-1BA22R,3520V25A6-1BB22R,3520V25A6-1BC22R,3520V25A6-1BD22R,3520V25A7-1AA22R,3520V25A7-1BA22R,3520V25A7-1BB22R,3520V25A7-1BC22R,3520V25A7-1BD22R,3520V25A8-1AA22R,3520V25A8-1BA22R,3520V25A8-1BB22R,3520V25A8-1BC22R,3520V25A8-1BD22R,3520V-25A-8-1C22R,3520V25A8-86CB22R,3520V25A9-1AA22R,3520V25A9-1BA22R,3520V25A9-1BB22R,3520V25A9-1BC22R,3520V25A9-1BD22R,3520V30A10-1AA22R,3520V30A10-1BA22R,3520V30A10-1BB22R,3520V30A10-1BC22R,3520V30A10-1BD22R,3520V-30A-10-1C22R,3520V30A11-1AA22R,3520V30A11-1BA22R,3520V30A11-1BB22R,3520V30A11-1BC22R,3520V30A11-1BD22R,3520V-30A-11-1C22R,3520V30A11-1CC22R,3520V30A11-86CC22R,3520V30A12-1AA22R,3520V30A12-1AD22R,3520V30A12-1BA22R,3520V30A12-1BB22R,3520V30A12-1BC22R,3520V30A12-1BD22R,3520V-30A-12-1C22R,3520V30A12-1DC22R,3520V30A14-1AA22L,3520V30A14-1AA22R,3520V30A14-1BA22R,3520V30A14-1BB22R,3520V30A14-1BC22R,3520V30A14-1BD22R,3520V-30A-14-1C22R,3520V30A14-1CB22R,3520V30A2-1AA22R,3520V30A2-1BA22R,3520V30A2-1BB22R,3520V30A2-1BC22R,3520V30A2-1BD22R,3520V30A2-1CC22R,3520V30A3-1AA22R,3520V30A3-1BA22R,3520V30A3-1BB22R,3520V30A3-1BC22R,3520V30A3-1BD22R,3520V30A4-1AA22R,3520V30A4-1BA22R,3520V30A4-1BB22R,3520V30A4-1BC22R,3520V30A4-1BD22R,3520V30A5-1AA22R,3520V30A5-1BA22R,3520V30A5-1BB22R,3520V30A5-1BC22R,3520V30A5-1BD22R,3520V-30A-5-1C22R,3520V30A5-1DB22R,3520V30A5-1DC22R,3520V30A6-1AA22R,3520V30A6-1BA22R,3520V30A6-1BB22R,3520V30A6-1BC22R,3520V30A6-1BD22R,3520V30A7-1AA22R,3520V30A7-1BA22R,3520V30A7-1BB22R,3520V30A7-1BC22R,3520V30A7-1BD22R,3520V30A8-1AA22R,3520V30A8-1BA22R,3520V30A8-1BB22R,3520V30A8-1BC22R,3520V30A8-1BD22R,3520V-30A-8-1C22R,3520V30A8-1CB22R,3520V30A8-1CC22R,3520V30A8-1DC22R,3520V30A8-1DD22R,3520V30A9-1AA22R,3520V30A9-1BA22R,3520V30A9-1BB22R,3520V30A9-1BC22R,3520V30A9-1BD22R,3520V32A10-1AA22R,3520V32A10-1BA22R,3520V32A10-1BB22R,3520V32A10-1BC22R,3520V32A10-1BD22R,3520V32A11-1AA22R,3520V32A11-1BA22R,3520V32A11-1BB22R,3520V32A11-1BC22R,3520V32A11-1BD22R,3520V32A12-1AA22R,3520V32A12-1BA22R,3520V32A12-1BB22R,3520V32A12-1BC22R,3520V32A12-1BD22R,3520V32A14-1AA22R,3520V32A14-1BA22R,3520V32A14-1BB22R,3520V32A14-1BC22R,3520V32A14-1BD22R,3520V32A2-1AA22R,3520V32A2-1BA22R,3520V32A2-1BB22R,3520V32A2-1BC22R,3520V32A2-1BD22R,3520V32A3-1AA22R,3520V32A3-1BA22R,3520V32A3-1BB22R,3520V32A3-1BC22R,3520V32A3-1BD22R,3520V32A4-1AA22R,3520V32A4-1BA22R,3520V32A4-1BB22R,3520V32A4-1BC22R,3520V32A4-1BD22R,3520V32A5-1AA22R,3520V32A5-1BA22R,3520V32A5-1BB22R,3520V32A5-1BC22R,3520V32A5-1BD22R,3520V32A6-1AA22R,3520V32A6-1BA22R,3520V32A6-1BB22R,3520V32A6-1BC22R,3520V32A6-1BD22R,3520V32A7-1AA22,3520V32A7-1BA22R,3520V32A7-1BB22R,3520V32A7-1BC22R,3520V32A7-1BD22R,3520V32A8-1AA22R,3520V32A8-1BA22R,3520V32A8-1BB22R,3520V32A8-1BC22R,3520V32A8-1BD22R,3520V32A9-1AA22R,3520V32A9-1BA22R,3520V32A9-1BB22R,3520V32A9-1BC22R,3520V32A9-1BD22R,3520V35A10-1AA22R,3520V35A10-1BA22R,3520V35A10-1BB22R,3520V35A10-1BC22R,3520V35A10-1BD22R,3520V-35A-10-1C22R,3520V35A11-1AA22R,3520V35A11-1BA22R,3520V35A11-1BB22R,3520V35A11-1BC22R,3520V35A11-1BD22R,3520V-35A-11-1C22R,3520V35A11-1DD22R,3520V35A12-1AA22R,35
一、型號解析
3525VQ30A25-1CC 是高壓定量雙聯子母葉片泵（3525VQ 系列，前泵 30 排量、后泵 25 排量）。
- 3525VQ：系列代號，雙聯高壓葉片泵；前泵 35V 規格、后泵 25V 規格。
- 30：前泵（軸端）排量代號，≈97.7 mL/r。
- A：油口連接方式，SAE 4 螺栓法蘭。
- 25：后泵（蓋端）排量代號，≈45.4 mL/r。
- 1：軸伸形式，1 型平鍵標準軸。
- C：安裝法蘭，標準 SAE 法蘭。
- C：旋轉方向，右旋（從泵蓋端看順時針）。

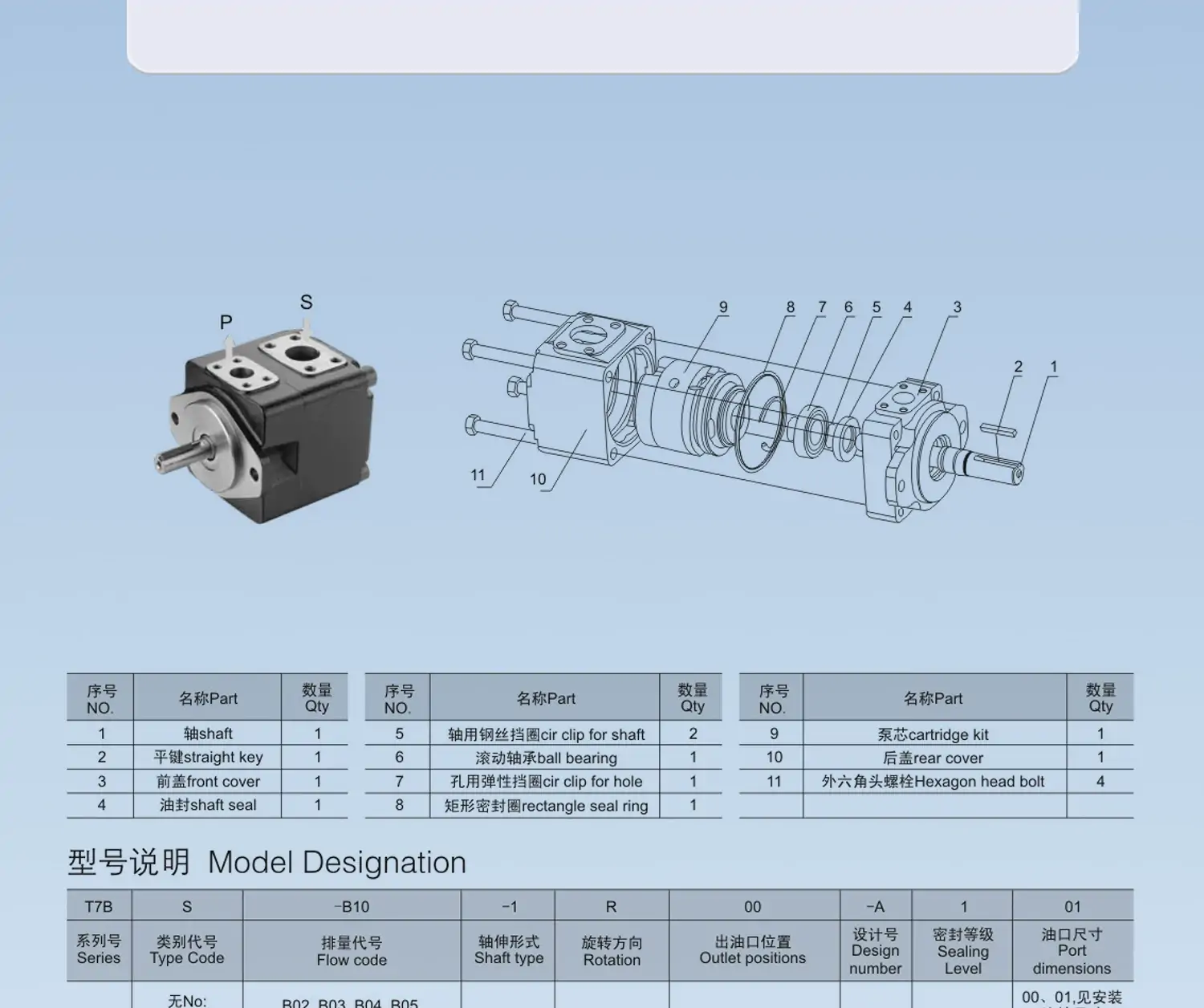

二、結構組成
- 泵體：高強度鑄鐵，雙聯整體式，剛性強、抗振、散熱好。
- 雙泵芯（定子 / 轉子 / 子母葉片）：前泵（35V）：10 組子母葉片，定子內曲線高壓耐磨合金。后泵（25V）：10 組子母葉片，結構同前泵，排量更小。轉子：雙轉子開 10 道槽，葉片由底部壓力油推動，雙接觸密封。
- 浮動配流盤：前后雙金屬側板，自動補償軸向間隙，高壓下維持高容積效率。
- 泵軸：加粗平鍵軸，徑向力平衡，軸承負載低。
- 密封：標準丁腈橡膠（-20℃~+80℃），可選氟橡膠（高溫）。
- 插裝式泵芯：雙泵芯均可現場快速更換，無需拆泵體，維護簡便。
三、工作原理
- 雙泵獨立吸壓油：前后雙轉子同步旋轉，各自完成吸油→壓油循環，雙回路獨立供油。
- 雙作用壓力平衡：每轉子每轉一周，兩次吸油 / 壓油，徑向力抵消，運行平穩、噪聲低。
- 子母葉片密封：子片始終貼合定子，雙密封防內泄，高壓容積效率高。
- 浮動側板補償：軸向間隙自動補償，磨損后仍保持高效率，壽命長。

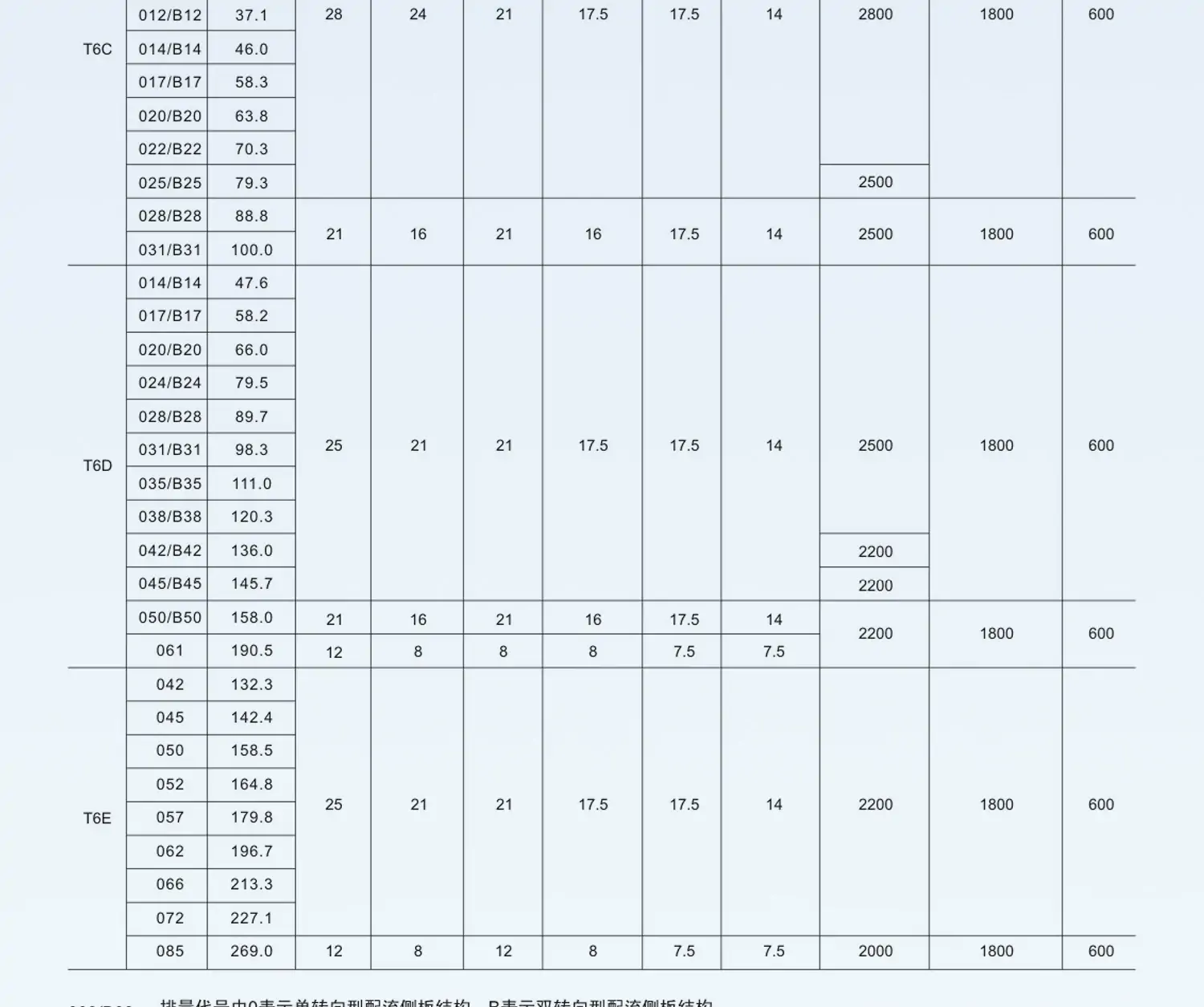

四、核心參數（標準工況）
- 幾何排量：前泵97.7 mL/r；后泵45.4 mL/r。
- 額定壓力：210 bar；峰值240 bar。
- 轉速范圍：600–2200 rpm（推薦 1200–1800 rpm）。
- 容積效率：≥92%（150 bar、1500 rpm）。
- 噪聲：≤72 dB（A）（150 bar、1500 rpm）。
- 介質粘度：10–860 cSt（推薦 32–68 cSt 抗磨液壓油）。
- 工作溫度：?20℃～+80℃（氟橡膠密封可達 + 120℃）。
- 重量：≈55 kg。
五、性能優勢
- 高壓雙聯大流量：雙泵合流流量大，額定 210 bar，適配雙回路高壓系統。
- 低噪平穩：10 葉片 + 雙作用平衡，流量脈動?。ā?.5 bar）、噪聲低，適合精密設備。
- 高效耐久：子母葉片 + 浮動側板，內泄小、發熱低、磨損少、壽命長。
- 結構緊湊：雙聯集成，體積小、重量輕，安裝空間小。
- 維護簡便：雙插裝泵芯可現場快速更換，無需專業工具，停機時間短。
- 抗污染強：子母結構葉片，抗污染能力優異，適應惡劣工況。
六、典型應用
- 注塑機、壓鑄機（高壓雙回路、精密控制）。
- 工程機械、礦山機械（中高壓雙系統、重載工況）。
- 冶金設備、工業自動化（高壓雙動力源、多執行器獨立控制）。
七、使用注意
- 油液清潔：建議10 μm過濾，避免顆粒磨損定子與葉片。
- 轉速控制：避免長期低于 600 rpm 或高于 2200 rpm，防止效率下降或過熱。
- 壓力匹配：長期工作壓力建議≤180 bar，延長泵芯壽命。
