一、型號解析
T6D-038-1R00-A1 為單聯定量高壓葉片泵（T6D 系列、38 排量、標準配置）。
- T6D：系列代號，中型高壓單聯葉片泵。
- 038：幾何排量 38 mL/r。
- 1：軸伸規格（1 型，平鍵軸，SAE C 法蘭）。
- R：旋轉方向（右旋，從軸端看順時針）。
- 00：油口布置（進油口在下、出油口在上，標準方位）。
- A1：密封與設計版本（A = 標準丁腈橡膠密封；1 = 標準壓力 / 結構設計）。

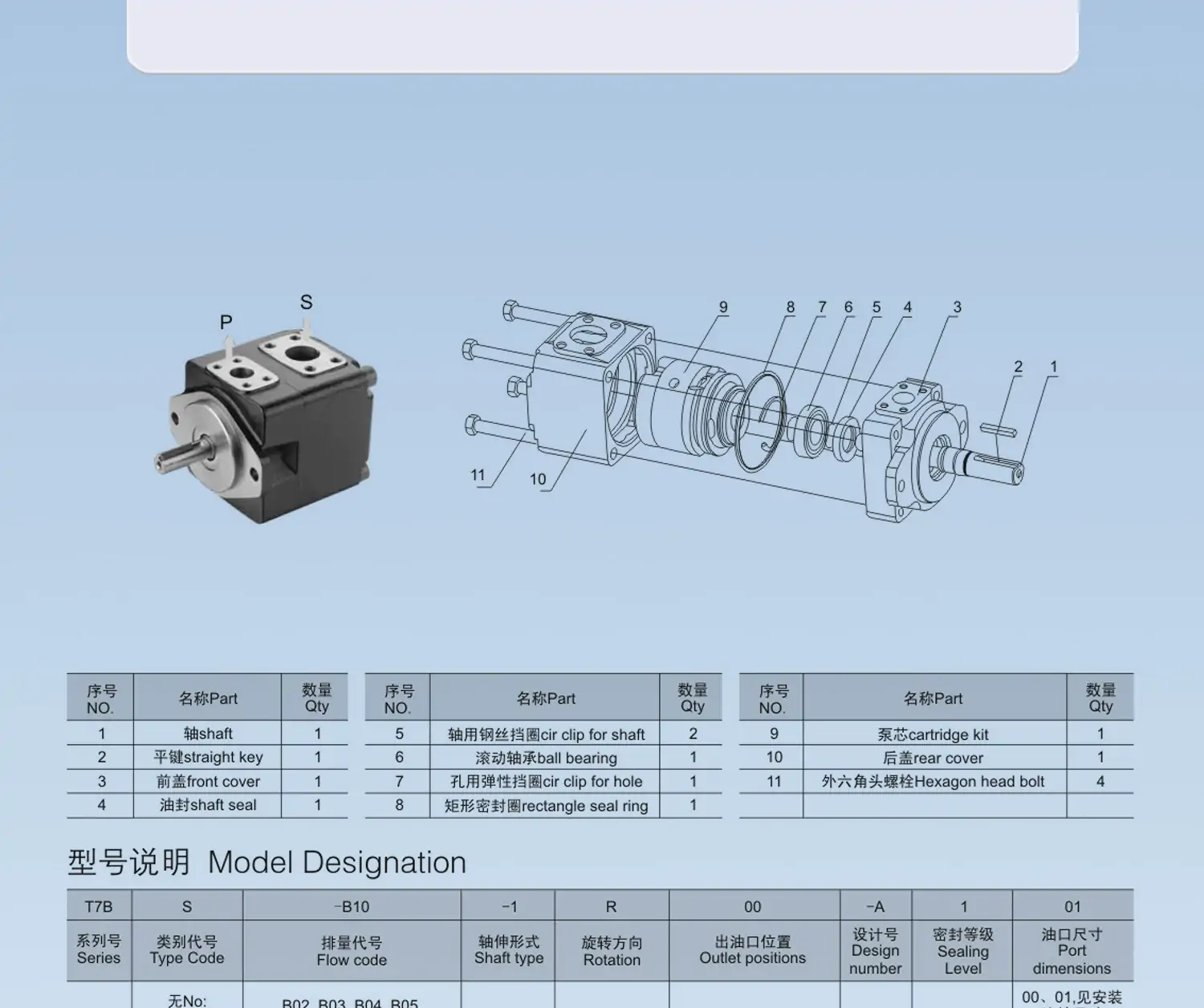

二、結構組成
- 泵體：高強度鑄鐵，整體式結構，剛性強、抗振、散熱好。
- 定子 / 轉子 / 雙唇葉片：定子：內曲線高耐磨合金，雙作用壓力平衡設計。轉子：開 12 道葉片槽，配雙唇葉片（雙接觸唇）。葉片：12 組雙唇葉片，底部柱銷推動，雙唇交替貼合定子，磨損低、壽命長（為普通葉片 2 倍以上）。
- 配流盤：前后浮動側板，自動補償軸向間隙，維持高容積效率。
- 泵軸：加粗平鍵軸，徑向力平衡，軸承負載低。
- 密封：標準丁腈橡膠（-20℃~+80℃），可選氟橡膠（高溫）。
- 模塊化泵芯：定子 / 轉子 / 葉片 / 配流盤總成，可現場更換，無需拆泵體。
三、工作原理
- 吸油：轉子旋轉，葉片離心甩出，油腔容積擴大，油液經吸油口吸入。
- 壓油：轉子繼續轉動，油腔容積縮小，油液加壓后從排油口輸出。
- 雙作用平衡：轉子每轉一周，完成兩次吸油 / 壓油，徑向力相互抵消，運行平穩、噪聲低。
- 雙唇葉片補償：雙唇交替接觸定子，底部柱銷推動，高壓下貼合更緊、內泄更小、效率更高。

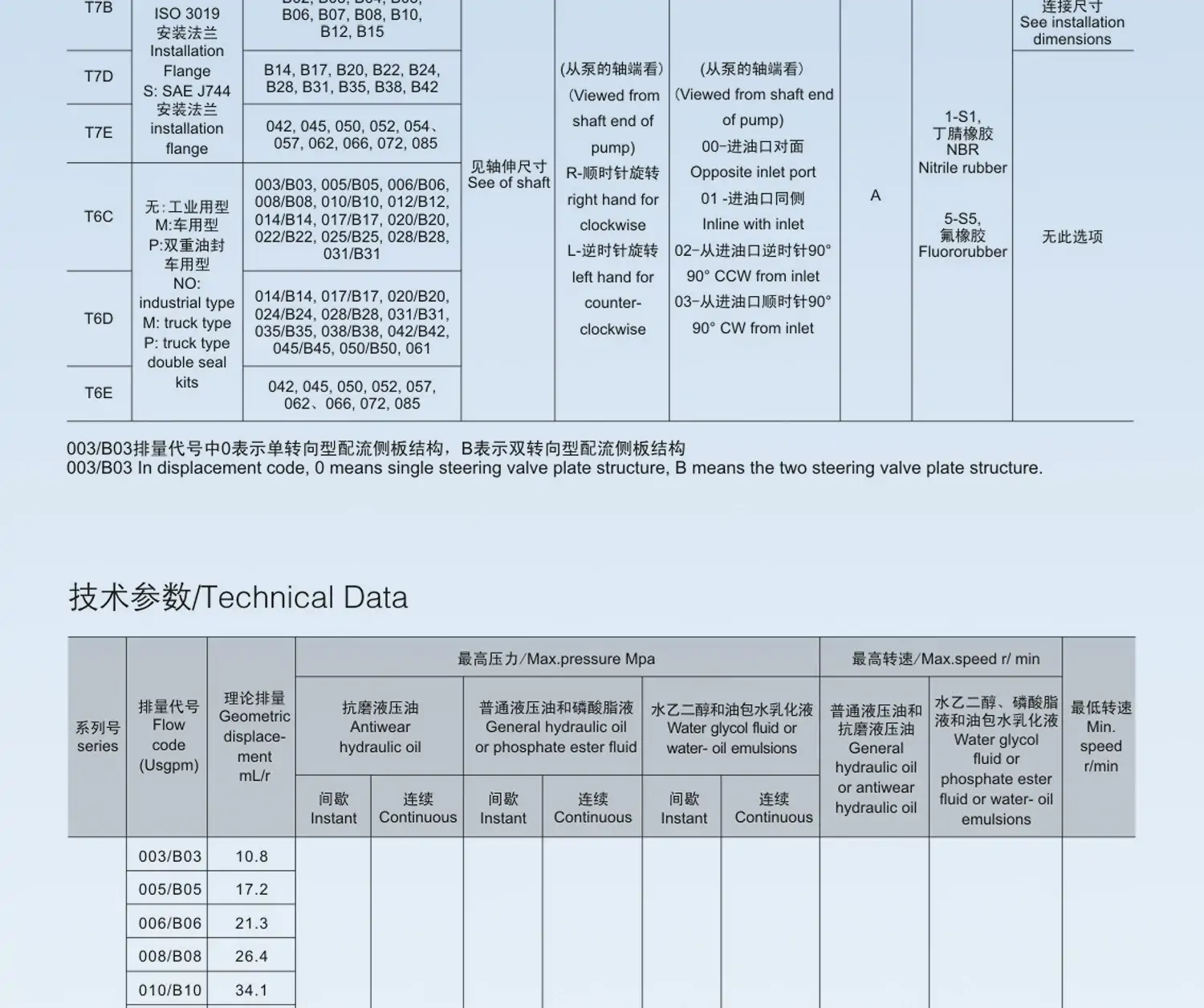

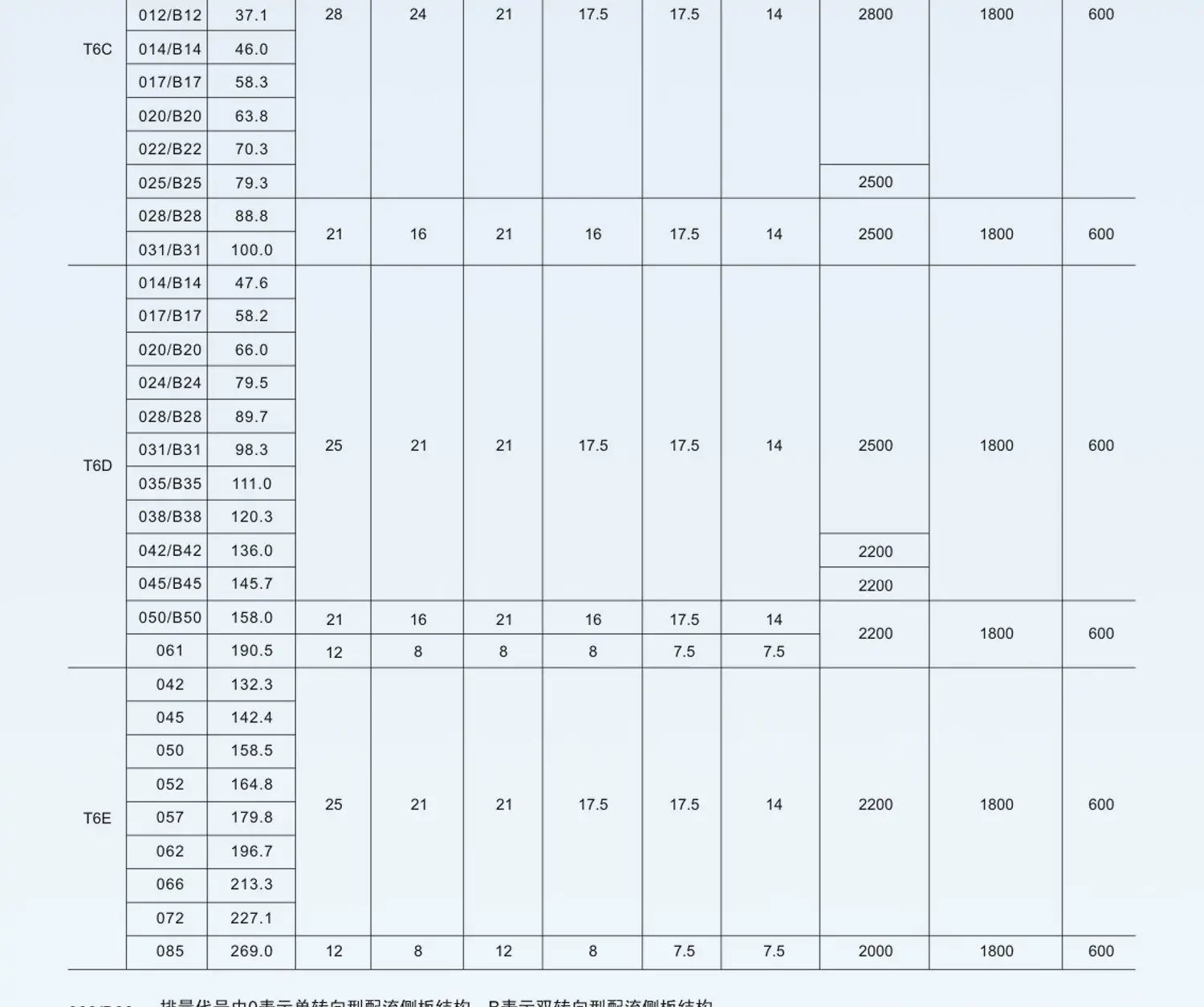

四、核心參數（標準工況）
- 幾何排量：38 mL/r
- 額定壓力：210 bar（21 MPa）
- 最高峰值壓力：275 bar（27.5 MPa）
- 轉速范圍：600–2800 rpm（推薦 1200–1800 rpm）
- 容積效率：≥94%（150 bar、1500 rpm）
- 噪聲：≤65 dB（A）（150 bar、1500 rpm）
- 介質粘度：10–860 cSt（推薦 32–68 cSt 抗磨液壓油）
- 工作溫度：?20℃～+80℃（氟橡膠密封可達 + 120℃）
- 重量：≈21 kg
五、性能優勢
- 高壓高效：210 bar 額定壓力，雙唇葉片 + 浮動側板，容積效率高、內泄小、發熱低。
- 低噪平穩：12 葉片設計 + 雙作用壓力平衡，流量脈動小（±2 bar）、噪聲低，適合精密設備。
- 耐久可靠：雙唇葉片 + 柱銷推動，葉片對定子壓力小、磨損低、壽命長。
- 結構緊湊：單聯集成，體積小、重量輕，安裝空間小。
- 維護簡便：模塊化泵芯可現場更換，無需專業工具，停機時間短。
- 抗污染強：雙唇結構葉片，抗污染能力優異，適應惡劣工況。
六、典型應用
- 注塑機、壓鑄機、液壓成型機（中高壓、穩定流量回路）。
- 機床、冶金設備、工程機械（中高壓、低噪、高可靠系統）。
- 工業自動化生產線（單執行器或多執行器同步控制）。
七、使用注意
- 油液清潔：建議10 μm過濾，避免顆粒磨損定子與葉片。
- 轉速控制：避免長期低于 600 rpm 或高于 2800 rpm，防止效率下降或過熱。
- 壓力匹配：長期工作壓力建議≤180 bar，延長泵芯壽命。
- 安裝同軸度：聯軸器同軸度≤0.1 mm，避免振動與異響。
