一、型號解析
T67DDBS 為三聯定量葉片泵（T67 系列、D 殼體、三聯、標準設計）。
- T67：系列代號，三聯泵配置。
- D：殼體規格（D 型，中大排量）。
- DB：三聯結構（前 / 中 / 后三泵同軸）。
- S：標準設計（標準壓力、標準密封）。
- 完整型號通常帶排量：T67DDBS-XXX-XXX-XXX（前泵 - 中泵 - 后泵排量，單位 mL/r）。

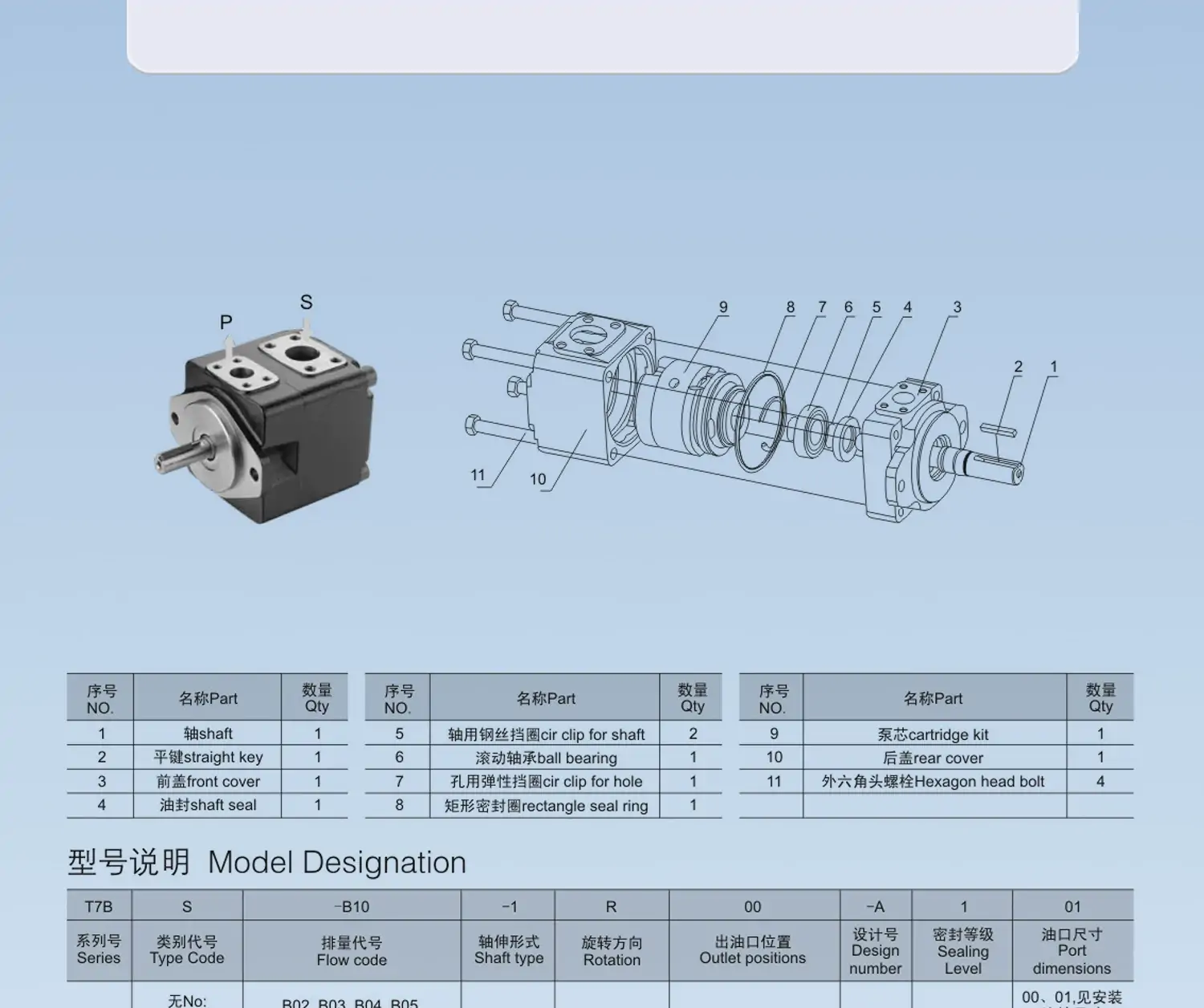

二、結構組成
- 泵體：高強度鑄鐵，黑色磷化，三腔獨立、整體剛性強，抗振散熱好。
- 定子 / 轉子 / 雙唇葉片（三聯泵芯）：定子：3 組內曲線高耐磨合金，壓力平衡設計。轉子：3 組同軸轉子，開葉片槽，柱銷式雙唇葉片驅動。葉片：雙唇結構，兩唇交替接觸定子，高壓貼合更緊、磨損低、壽命長。
- 配流盤：3 組浮動側板，自動補償軸向間隙，維持高容積效率。
- 泵軸：加粗花鍵 / 平鍵，三泵同軸驅動，徑向力平衡，軸承負載低。
- 密封：標準丁腈橡膠，可選氟橡膠（高溫 / 特殊介質）。
- 模塊化泵芯：三組獨立可更換泵芯，現場無需拆泵體，維護便捷。
三、工作原理
- 吸油：同軸三轉子同步旋轉，葉片離心甩出，三腔容積同步擴大，油液經各自吸油口吸入。
- 壓油：轉子繼續轉動，三腔容積同步縮小，油液加壓后從獨立排油口輸出。
- 三聯協同：三泵獨立出油、同軸驅動，可組合為 “高壓小流量 + 中壓中流量 + 低壓大流量” 回路，適配復雜系統。
- 壓力平衡：葉片底部通壓力油，柱銷推動，徑向力平衡，磨損小、噪聲低、運行平穩。

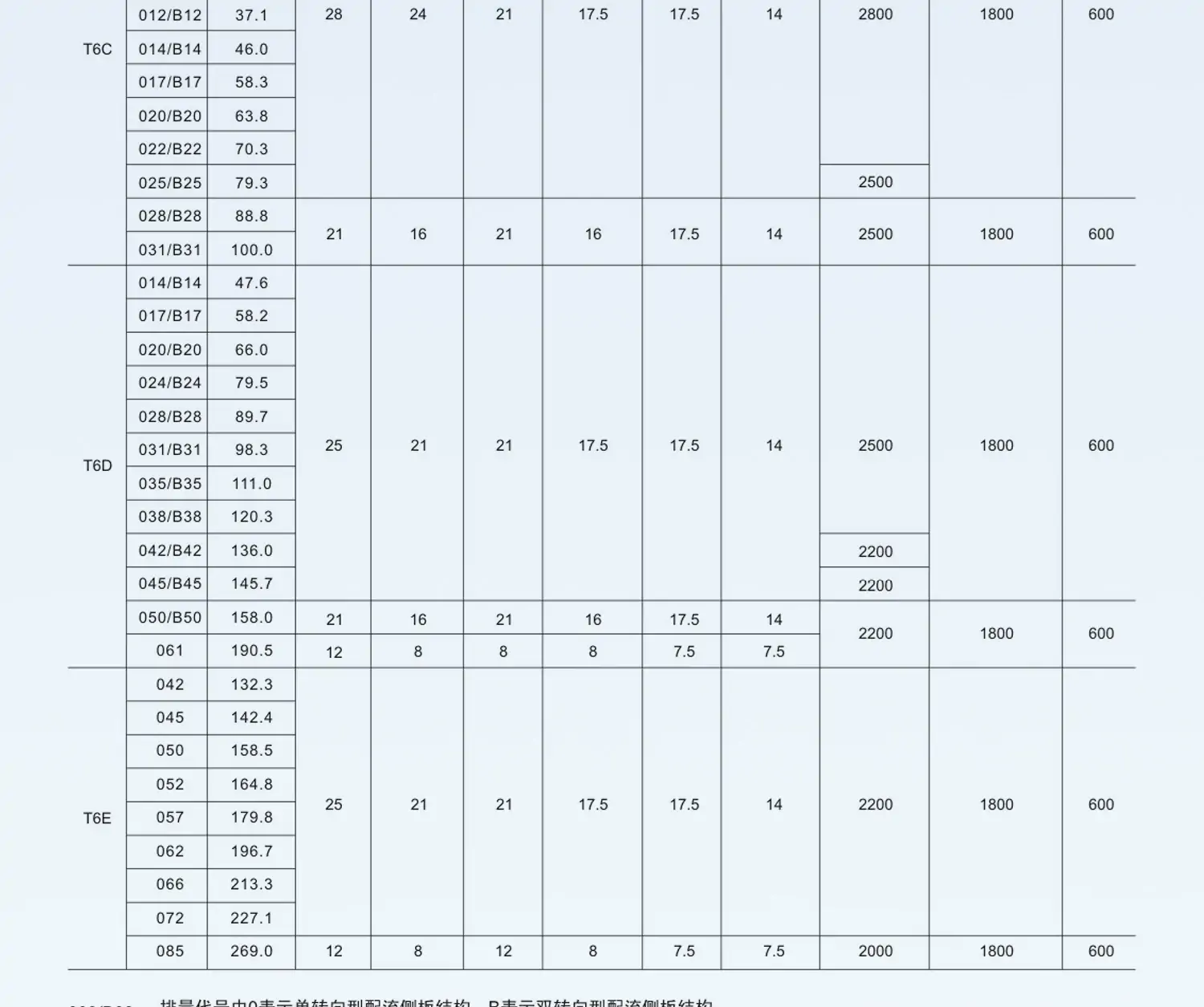

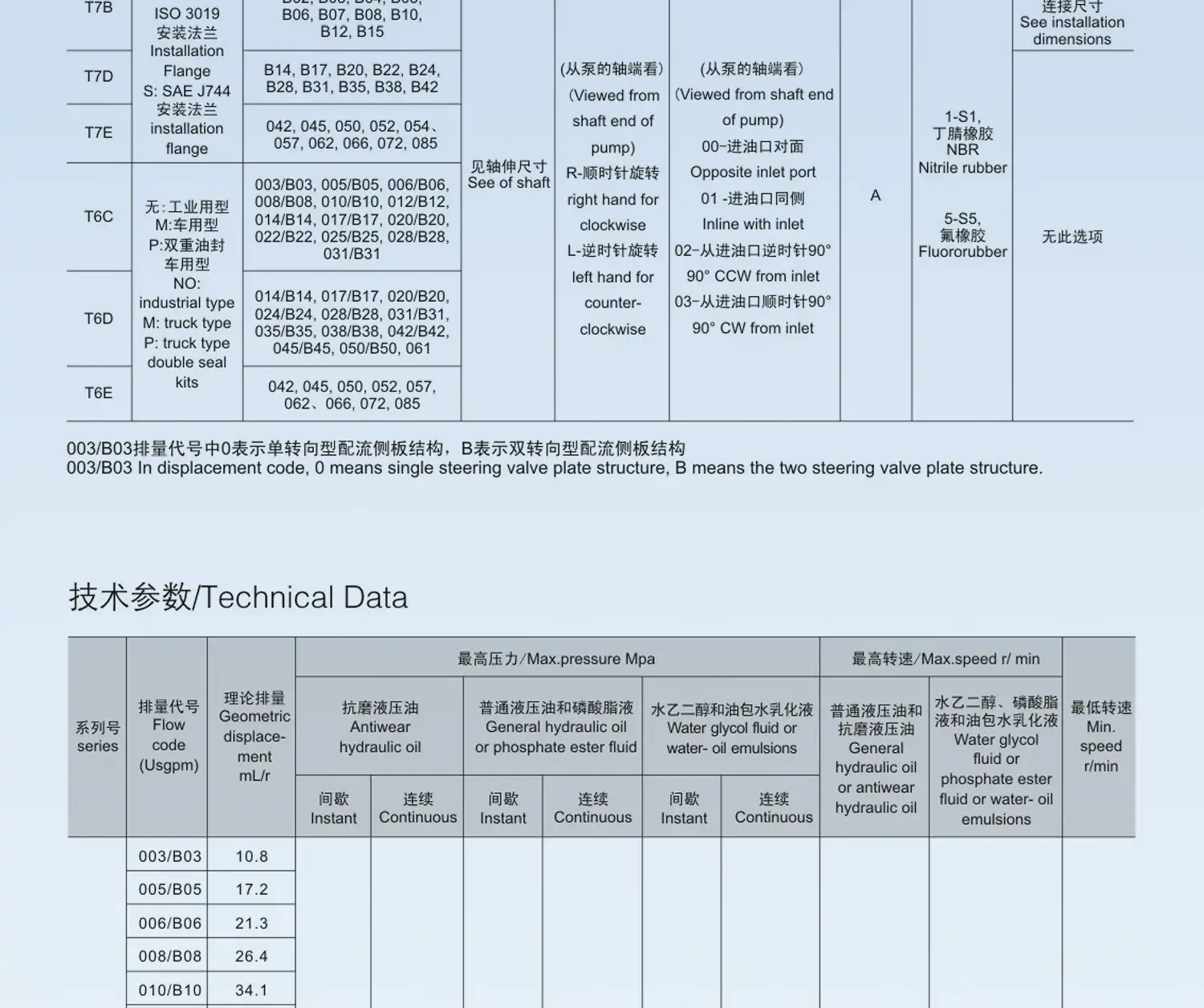

四、核心參數（標準工況）
- 排量范圍（單泵）：前泵（P1）：50–158 mL/r中泵（P2）：50–158 mL/r后泵（P3）：50–100 mL/r
- 最高連續壓力：P1：240 bar（24 MPa）P2：240 bar（24 MPa）P3：280 bar（28 MPa）
- 峰值壓力：P1/P2/P3：280–300 bar
- 額定轉速：600–2200 rpm（推薦 1200–1800 rpm）
- 容積效率：≥93%（150 bar、1500 rpm）
- 噪聲：≤70 dB（A）（150 bar、1500 rpm）
- 介質粘度：10–2000 cSt（推薦 32–68 cSt 抗磨液壓油）
- 工作溫度：?20℃～+80℃（氟橡膠密封可達 + 120℃）
- 重量：≈56 kg
五、性能優勢
- 高效節能：三聯獨立控制，按需輸出，容積效率高、內泄小、發熱低，能耗比多泵組合低15%–20%。
- 高壓耐久：240–280 bar 高壓能力，雙唇葉片 + 柱銷驅動，加厚殼體，壽命長、抗污染強。
- 低噪平穩：三腔壓力脈動抵消設計，運行安靜，適合大型精密設備。
- 結構緊湊：三聯同軸集成，體積小于三臺單泵，節省安裝空間。
- 維護簡便：模塊化泵芯可現場更換，無需專業工具，停機時間短。
六、典型應用
- 大型注塑機、壓鑄機、液壓成型機（多動作同步回路）。
- 工程機械（大型挖掘機、起重機）、冶金設備、船舶液壓系統。
- 工業自動化生產線（多執行器獨立壓力 / 流量控制）。
七、使用注意
- 油液清潔：建議10 μm過濾，避免顆粒磨損定子與葉片。
- 轉速控制：避免長期低于 600 rpm 或高于 2200 rpm，防止效率下降或過熱。
- 壓力匹配：長期工作壓力建議≤200 bar（P1/P2）、≤250 bar（P3），延長泵芯壽命。
- 安裝同軸度：聯軸器同軸度≤0.1 mm，避免振動與異響。
